Acoustic Clay
handmade by Henry
Handmade, one at a time, by Henry.

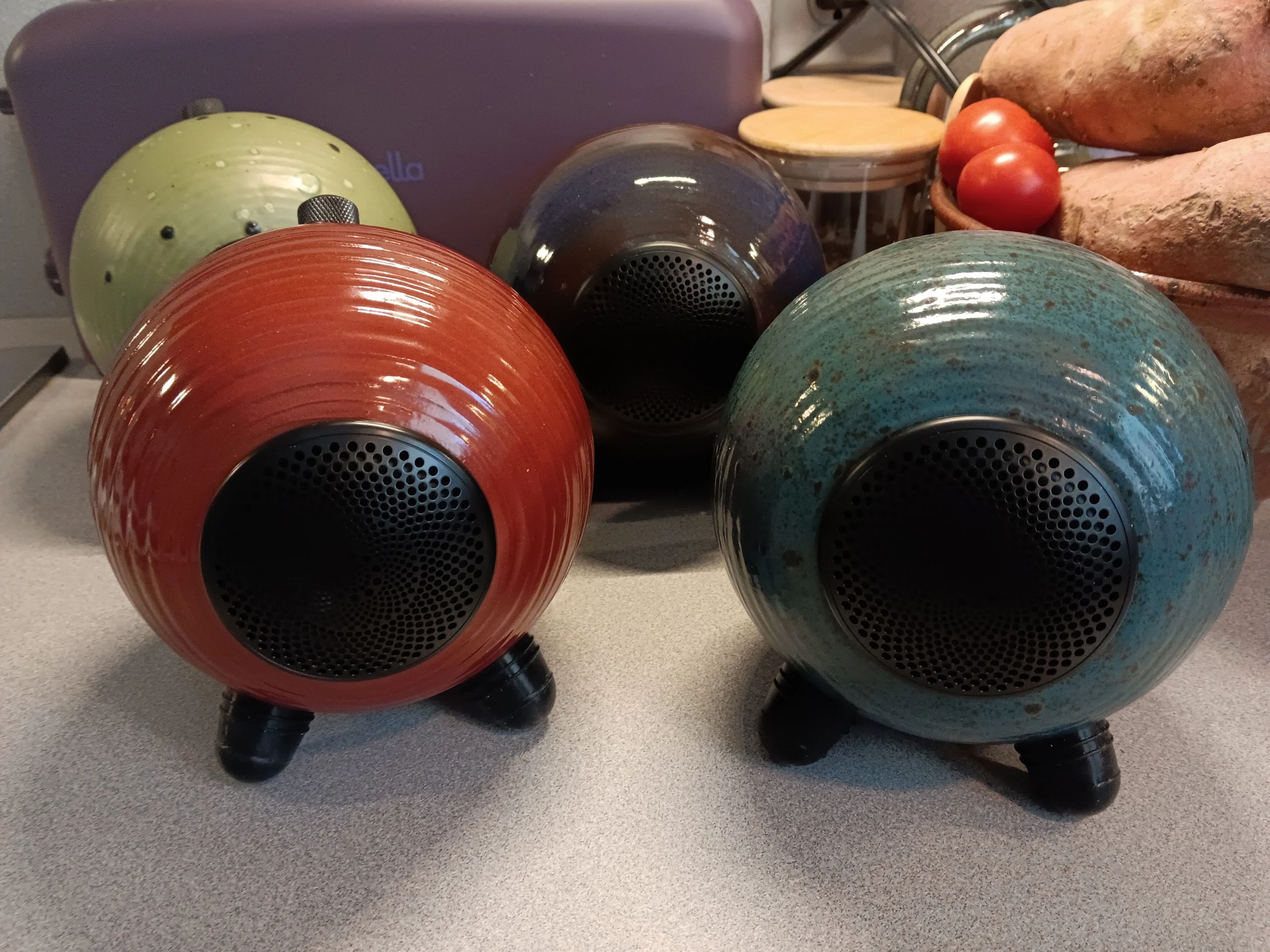

I make a range of Bluetooth and passive speakers

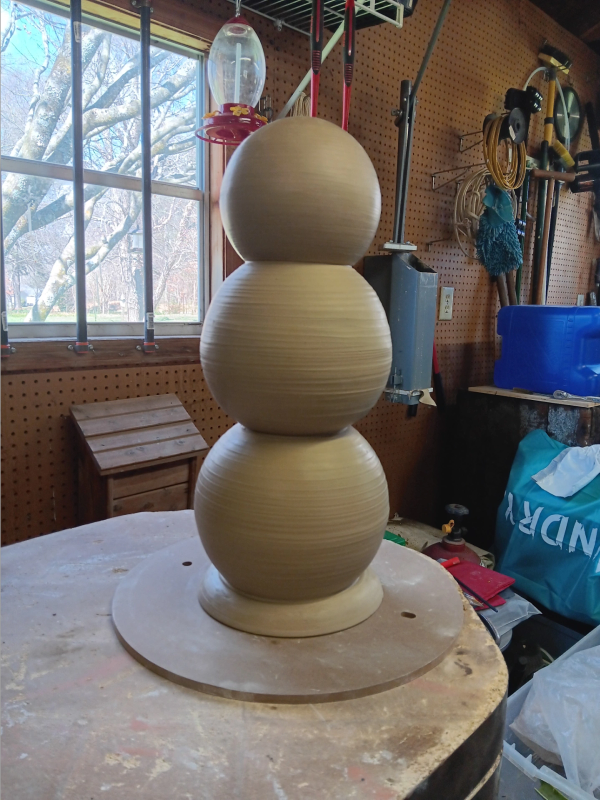

I use both hand building and wheel throwing abilities to create consistently uniform spheres
I'm always experimenting with glazes and application techniques to create stunning color combinations and textures
I like spheres
Because of their geometry, spheres are incredibly strong. Also, that geometry has advantages in audio design. The lack of flat surfaces and corners eliminates standing waves, and other undesirable effects sometimes attributed to box shapes. This results in clearer sound and spacious soundscapes.
Also, they make pretty cool lamps and other things!
Audio is an important part of my life and started over 50 years ago when I built my first “bedroom” amplifier. Pottery started about 20 years ago. I’ve been finding ways to incorporate stoneware into my electronics and music passion. This is one of those kitchen table, notepad schemes that accomplished that and makes me happy.
Here are a few facts regarding the electronic foundation of this great sounding little speaker.
- Built-in Bluetooth 5.3 module combined with a 1st generation IPEX antenna connector for improved signal reception. An extra wired internal antenna has been added to improve signal range. Compared with standard onboard antennas, this design helps reduce interference and provides more reliable connectivity.
- Powered by the widely used TPA3116 amplifier chip, this amplifier delivers clear and stable mono audio output with low distortion. When paired with the included 24V, 6A power supply, it delivers 35 watts of power (peak into 8 ohms).

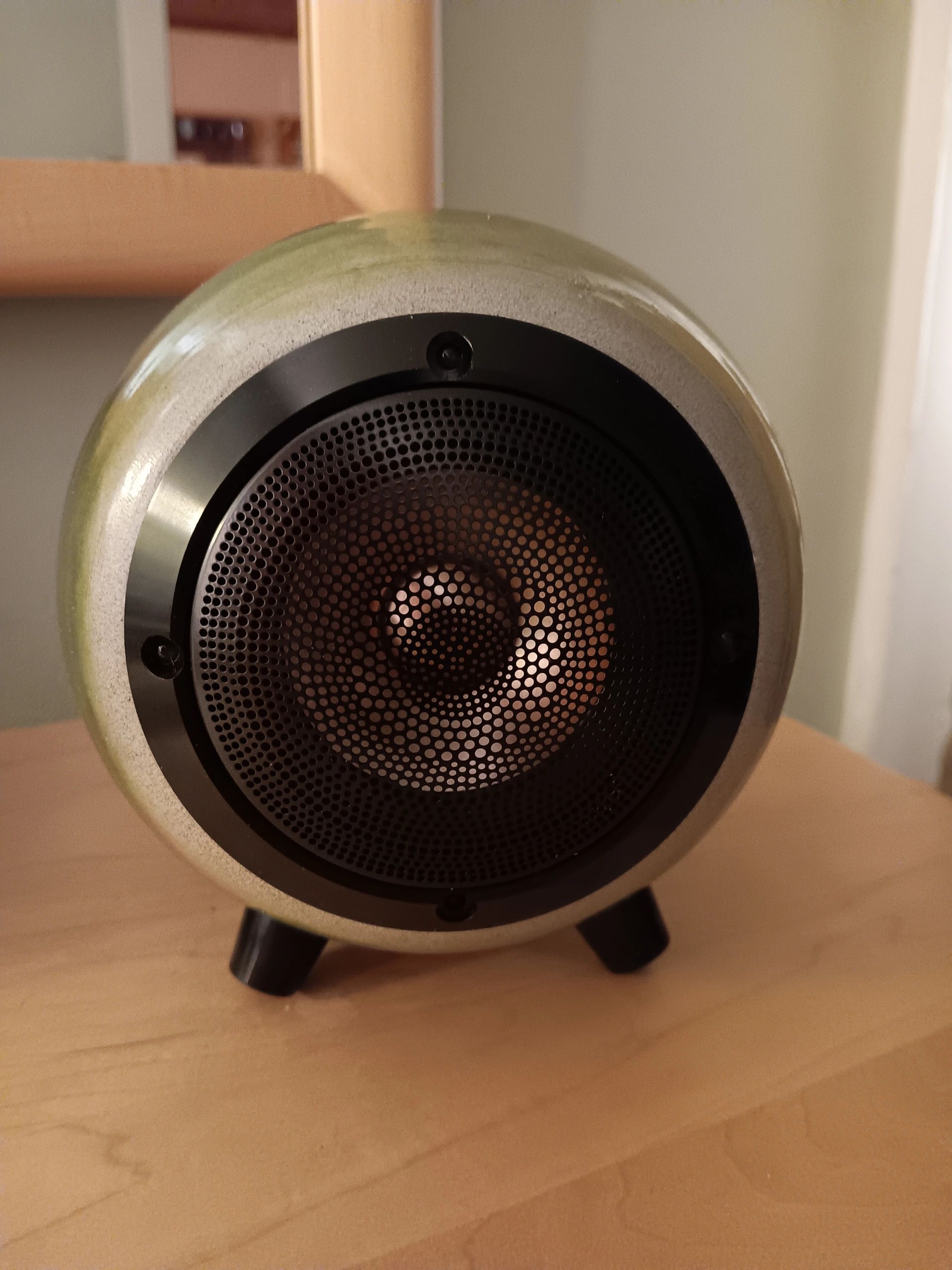

- High quality home audio 3 inch diameter wide-range drivers are chosen for this speaker to make it not just cool looking, but equally great sounding. Also, they are impressively loud when the mood hits (>90dB at 3 ft).
Simple Operation:
- Press the volume knob for approximately 3 seconds to turn on-off.
- The led will flash rapidly prior to connecting to a music source. When connected, it will remain lit. When playing music, the led will flash slowly.
Obviously, it isn’t portable for two reasons: Stoneware is fragile, and this amplifier requires more power than a reasonably sized battery could supply.
The included power supply is the maximum voltage that this amplifier can safely handle. It could be upgraded to a 10 amp unit if seeking a few more watts. The amplifier can be operated with as little as 12 volts if desired, yielding lower output wattage.

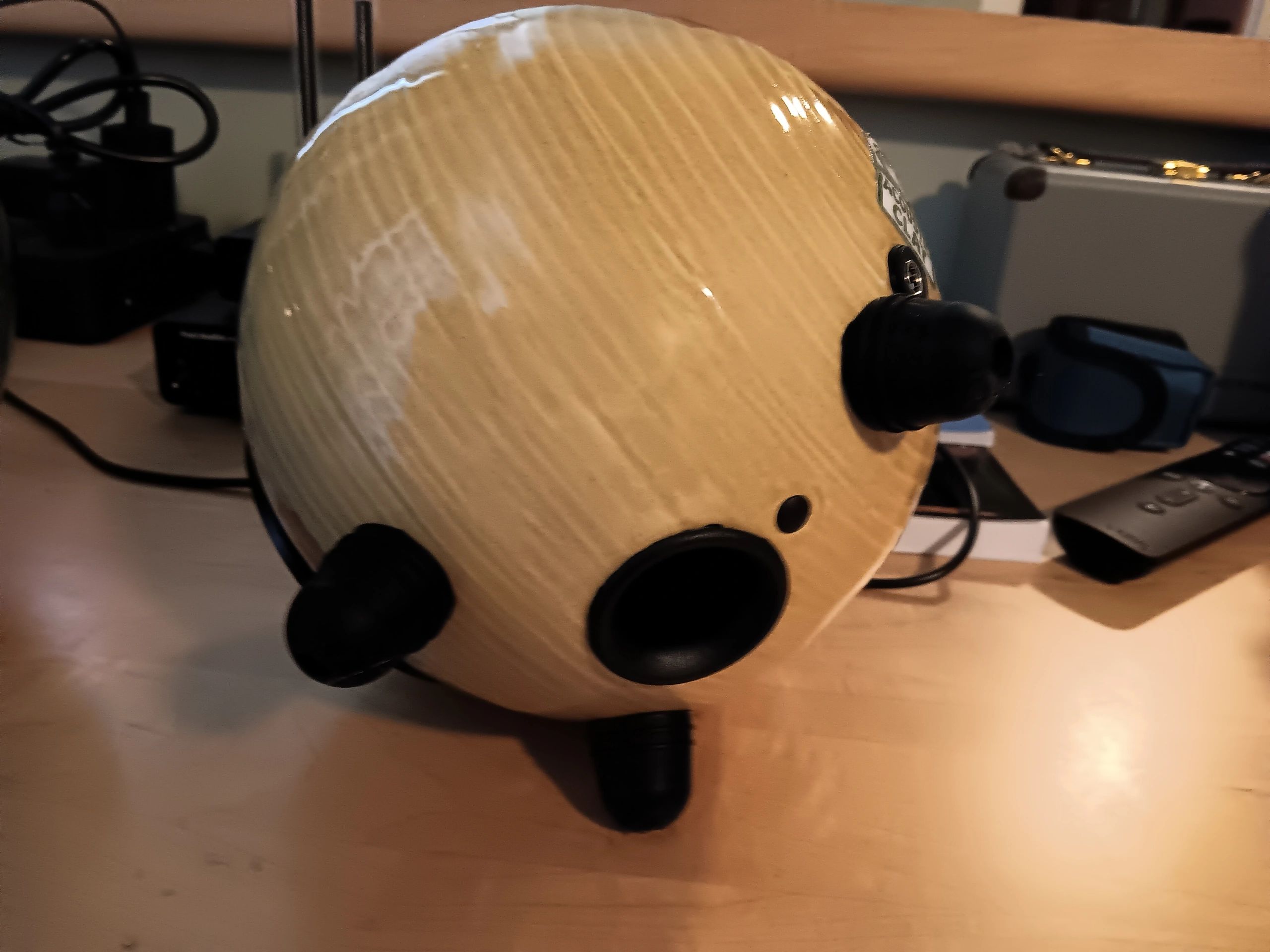

If you have any issues or questions, please call, text, or email me. I appreciate your leap of faith buying this little contraption and I’m not concerned about warranties, etc. If you break it, I’ll try to make it good again in a painless manner. Just don't use the port as a thumb hole and bowl with it!
Thank you, Henry
